eController: a light BMS for HVAC and lighting energy efficiency
On this page
- eController: remote control of HVAC and lighting systems from Energis.Cloud
- Wireless sensors for temperature, humidity and occupancy
- On-site gateway exchanging real-time data with Energis.Cloud over LoRaWAN
- Dashboards with comfort, occupancy, HVAC and lighting values across sites
eController: a building management system for multi-site organisations
At Energis, we developed the eController to give multi-site organisations a scalable and user-friendly way to control energy systems. It works as a building management system (BMS) and is particularly effective for HVAC and lighting systems, thanks to automation and real-time control.
With eController, you manage all your sites from one platform.
In today’s competitive and fast-paced business environment, effective energy management has become a priority for companies that want to reduce costs and promote sustainability. This entry shows how a Building Management System (BMS) can optimise the HVAC and lighting of a site, through the use case of a retailer with around 300 sites that implemented eController.
Watch the full video of eController.
Use case: a retailer with around 300 sites
The retailer wanted to improve the energy efficiency of its sites and implemented eController to optimise lighting and HVAC systems. On average, HVAC accounted for about 50% of its energy consumption, while lighting contributed 25%.
The main objectives of the project were to reduce energy waste and ensure optimal equipment performance. The energy management of each site relies on the BMS to control HVAC and lighting systems.
Wireless sensors were installed to measure comfort parameters such as temperature, humidity and occupancy, allowing automatic adjustments based on real-time data. This optimises energy use without compromising comfort.
Energy savings
On a 280 m² site, an 18% saving on total consumption was achieved by switching off the HVAC system one hour earlier and adjusting the summer and winter setpoints. At the same time, we optimised comfort levels for the occupants: the wireless sensors allowed us to fine-tune the system to ensure maximum comfort while reducing energy waste beyond that point.
A site’s consumption against its reference consumption over one day, with the hours below the objective in green and above the reference in red, an objective of −15% and −18.31% achieved.
The optimal use of HVAC systems and strategies such as reducing temperature setpoints significantly reduced the site’s energy consumption, which lowers operating costs and contributes to more sustainable energy management.
The setup components
Sensors
Wireless sensors that measure comfort parameters such as temperature, humidity and occupancy, and provide the data needed to make the right adjustments.
The gateway
An on-site device that coordinates the interaction of all controllers and sensors using LoRaWAN, and ensures real-time data exchange with Energis.Cloud.
Controllers
Wireless devices that give you remote control of your HVAC and lighting systems.

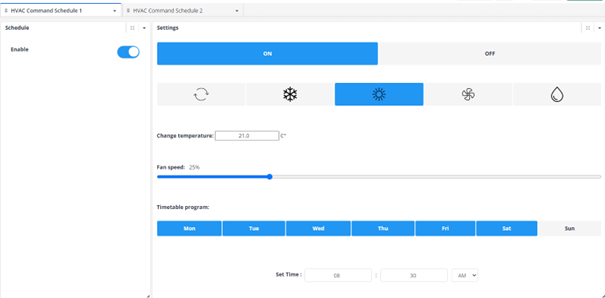

An HVAC command schedule: on or off, the mode, the temperature setpoint, the fan speed and the days and time at which the command runs.
The cloud software and dashboards
The eController interface makes it easy to adjust lighting schedules based on occupancy or to set HVAC systems to run more efficiently during peak and off-peak hours. You can monitor, configure and control your energy systems from anywhere, with the information you need to configure the best controller actions.

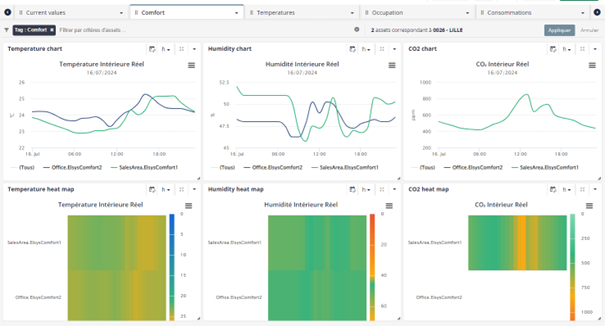

The eController dashboards give an overview of comfort, occupancy, HVAC and lighting values across multiple sites. They include maps showing current ambient temperatures, temperature setpoints, HVAC mode, fan speed and lighting status. Historical comfort charts and occupancy heat maps support data-driven decisions.
Comfort scores for one month: the share of occupied hours with temperature between 20 and 26 °C (89%), humidity between 35 and 70% (100%) and CO2 below 900 ppm (97%), with the charts against their thresholds and the heat maps.
These dashboards are part of an integrated automation solution for controlling building systems.
They speak about us
MCS wrote about this project: read the full MCS article.
Going further
The installed infrastructure, i.e. the gateway and dedicated sensors, can also be used for electricity, water and gas meters to complete the view of your consumption.
This is particularly useful for buildings without smart meters, where we otherwise have no insight into your consumption.
